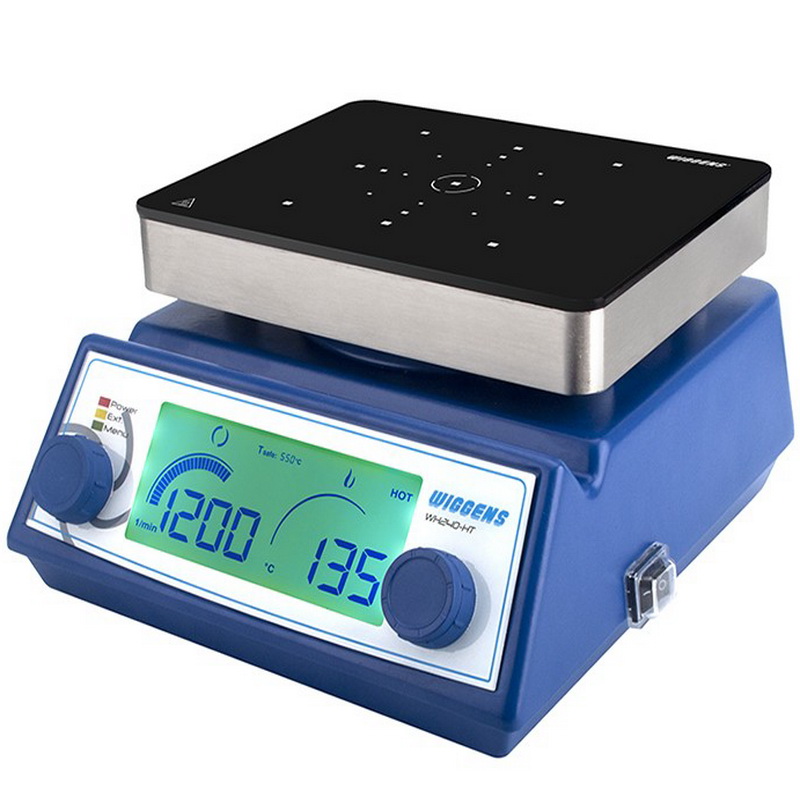

400401.01 | Infrared hot plate and magnetic stirrer with ceramic glass top plate, PT100 temperature sensor and advanced PID temperature control (WH240-HT)

Key Features

• Advanced infrared heating system ensures reliability and temperature stability
• Easy-to-clean anti-corrosive top plate made of ceramic glass
• Bright and clear LCD displays temperature, stirring speed, time and safety temperature
• Sealed outer shell and isolated critical parts enhance longevity even in harsh operating conditions
• Drainage system above control board to prevent liquids accessing instrument interior
• External PT100 temperature sensor connection for direct and precise control of the actual temperature (PT100 sensor included with instrument purchase)
• High temperature indicator for operator safety


Description

This advanced infrared hot plate and stirrer from Wiggens features an easy-to-clean anti-corrosive top plate made of ceramic glass and a bright, clear LCD that displays temperature, stirring speed, time and safety temperature.

The WH240-HT has a sealed outer shell and isolated critical parts to enhance longevity even in harsh operating conditions and a drainage system above the control board to prevent liquids accessing the instrument's interior.

The WH240-HT has a connection for a PT100 temperature sensor to allow for external temperature control. A high temperature indicator enhances operator safety during operation.

More Information

The following items are included with the purchase of the WH240-HT:

Part Number	Product Description
400401	WH240-HT magnetic stirrer with hot plate
PT100-01	PT100 temperature sensor (Type 1) Length: 170 mm Diameter: 4 mm Material: Stainless steel Operating range: -30 to +300°C
PT100-05	Holder and clamp for PT100 temperature sensor

Optional Accessories

Part Number	Product Description
PT100-02	PT100 temperature sensor, Type II Length: 300 mm Material: Stainless steel Operating range: -30 to ~+300°C
PT100-03	PT100 temperature sensor, Type III Length: 170 mm Material: Stainless steel, PTFE-coated Operating range: -30 to ~+250°C
PT100-04	PT100 temperature sensor, Type IV Length: 300 mm Material: Stainless steel, PTFE coated Operating range: -30 to ~+250°C
PT100-06	PT100 temperature Sensor, Type VI Length: 250 mm Diameter: 4 mm Material: Glass Temperature range: -30ºC ~+300°C

Specifications

Manufacturer	Wiggens
Model number	WH240-HT
Display mode	LCD
Top plate material	Ceramic glass
Maximum hot plate temperature	500ºC
Maximum solvent temperature (PT100 sensor)	300ºC
Temperature stability (PT100 sensor)	±2ºC
Safety temperature	50ºC - 550ºC adjustable
Stirring speed range	100 rpm - 1200 rpm
Heating capacity	600 W
Maximum stirring capacity (water)	20 L
Timer	1 minute - 1999 minutes or continuous
PID parameters	2 sets of PID (menu-selectable)
Interface	USB
High temperature protection (ΔT)	10ºC - 50ºC adjustable
Top plate dimensions (W x D)	190 mm x 150 mm
Instrument dimensions (W x D x H)	225 mm x 215 mm x 115 mm
