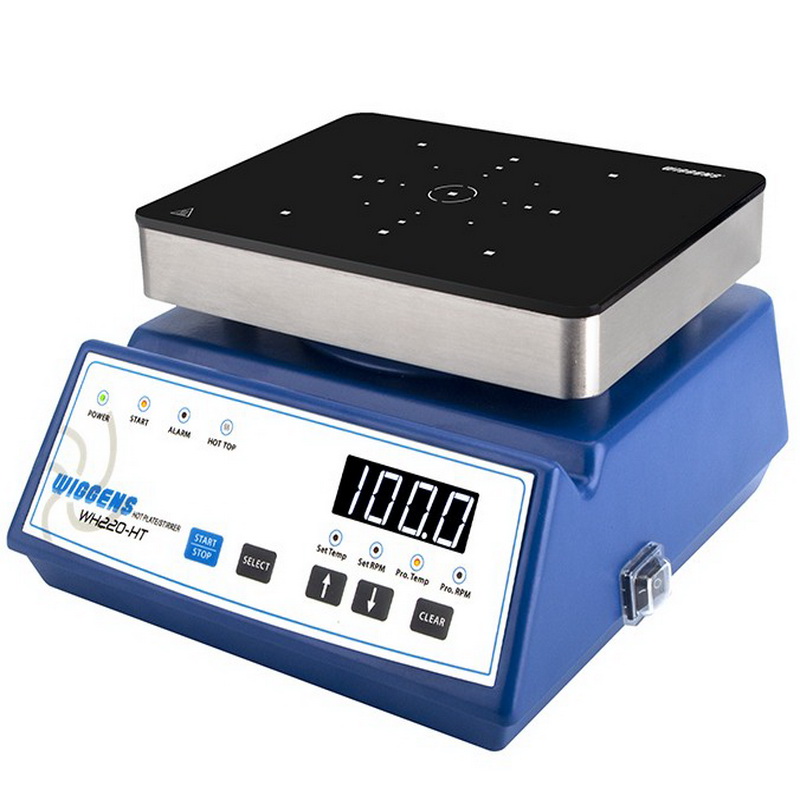

400301.01 | Infrared hot plate and magnetic stirrer with ceramic glass top plate and PT100 temperature sensor connection (WH220-HT)

Key Features
- Advanced infrared heating system ensures reliability and temperature stability
- Easy-to-clean anti-corrosive top plate made of ceramic glass
- Bright and clear LED displays temperature, stirring speed and safety temperature
- Sealed outer shell and isolated critical parts enhance longevity even in harsh operating conditions
- Drainage system above control board to prevent liquids accessing instrument interior
- External PT100 temperature sensor connection for direct and precise control of the actual temperature (PT100 sensor included with instrument purchase)
- High temperature indicator for operator safety
Description
The Wiggens WH220-HT infrared hot plate and stirrer features an easy-to-clean anti-corrosive top plate made of ceramic glass and a bright, clear LED that displays temperature, stirring speed and safety temperature.
The WH220-HT has a sealed outer shell and isolated critical parts to enhance longevity even in harsh operating conditions and a drainage system above the control board to prevent liquids accessing the instrument's interior.
The WH220-HT has a connection for a PT100 temperature sensor to allow for external temperature control. A high temperature indicator enhances operator safety during operation.
More Information
The following items are included with the purchase of the WH220-HT:
Part Number | Product Description |
400301 | WH220-HT magnetic stirrer with hot plate |
PT100-01 | PT100 temperature sensor (Type 1) Length: 170 mm Diameter: 4 mm Material: Stainless steel Operating range: -30 to +300°C |
PT100-05 | Holder and clamp for PT100 temperature sensor |
Optional Accessories
Part Number | Product Description |
PT100-02 | PT100 temperature sensor, Type II Length: 300 mm Material: Stainless steel Operating range: -30 to ~+300°C |
PT100-03 | PT100 temperature sensor, Type III Length: 170 mm Material: Stainless steel, PTFE-coated Operating range: -30 to ~+250°C |
PT100-04 | PT100 temperature sensor, Type IV Length: 300 mm Material: Stainless steel, PTFE coated Operating range: -30 to ~+250°C |
PT100-06 | PT100 temperature Sensor, Type VI Length: 250 mm Diameter: 4 mm Material: Glass Temperature range: -30ºC ~+300°C |
Specifications
Manufacturer | Wiggens |
Model number | WH220-HT |
Display mode | LED |
Top plate material | Ceramic glass |
Maximum top plate temperature | 500ºC |
Maximum solvent temperature (PT100 sensor) | 300ºC |
Temperature stability (PT100 sensor) | ±2ºC |
Safety temperature | 550ºC |
Stirring speed range | 100 rpm - 1200 rpm |
Heating capacity | 600 W |
Maximum stirring capacity (water) | 20 L |
PID parameters | 1 set of PID |
Interface | USB |
Top plate dimensions (W x D) | 190 mm x 150 mm |
Instrument dimensions (W x D x H) | 225 mm x 215 mm x 115 mm |
