MO-ARK | Laboratory incubator with rocking motion and rotisserie function, 20 litre capacity








Key Features

  •     90 mm touch screen and graphical control interface
  •     Rotisserie function built into incubator
  •     Rocking motion
  •     User temperature calibration
  •     Wide temperature control range
  •     Timer with alarm function
  •     Multiple safety features
  •     Full range of optional accessories available (please see below)

Description

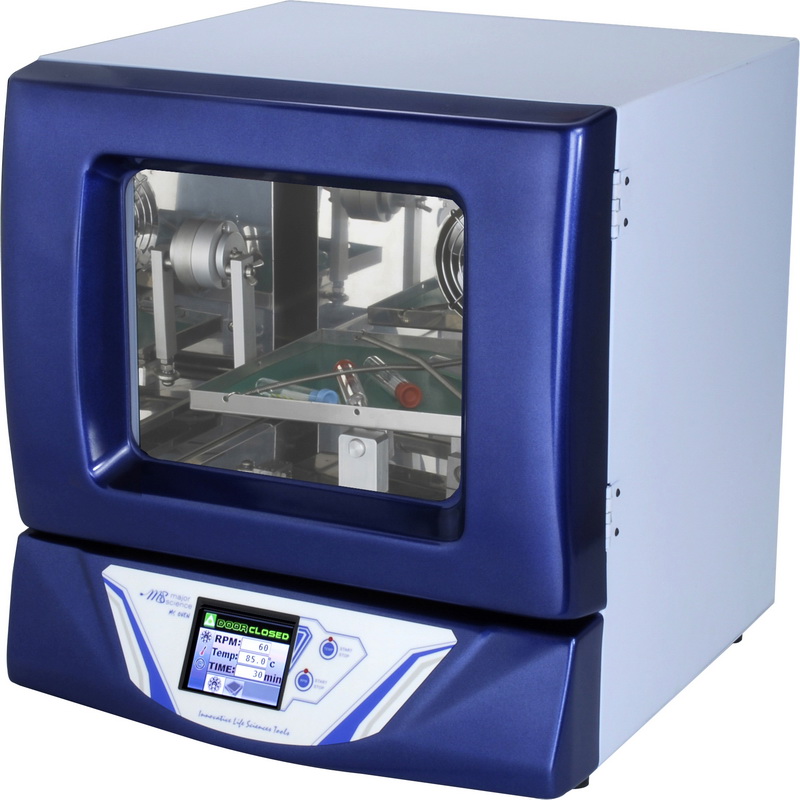

The MO-ARK laboratory incubator features advanced design that includes a 90 mm touch screen and graphical control interface. Superb temperature accuracy and uniformity allows users to perform precision mixing and incubation.

The MO-ARK generates a see-saw rocking motion and a rotisserie function is built into the instrument for use with optional rotisseries (please see below). The MO-ARK offers a wide temperature control range from ambient to 85°C as well as a timer with alarm function.

Multiple safety systems are incorporated into the incubator to protect end-users and samples.

Optional accessories

The optional accessories listed below are available for this oven:

Part Number
Description
MO-SEESAW
Rocking shaker platform for MO-ARK
MO-FH-125
125 mL flask holder, 1 each*
MO-FH-250
250 mL flask holder, 1 each*
MO-FH-500
500 mL flask holder, 1 each*
MO-HY-24RT
Rotisserie for 24 x 15 mL conical tubes
MO-HY-16RT
Rotisserie for 16 x 50 mL conical tubes
MO-HY-8RT
Rotisserie for 8 x 40 mm diameter tubes


*Oven platforms are supplied pre-drilled to allow all sizes of flask holder to be attached.

Specifications

Manufacturer
Major Science
Model numberMO-ARK
Display90 mm 64K TFT display
Controller32 bit microprocessor
Control InterfaceTouch screen & graphical interface
Rotisserie functionBuilt-in but rotisseries sold separately (please see below)
Rotisserie speed / Increment5-100 rpm / 1 rpm
Timer1 - 9999 minutes with alarm or continuous operation
Shaker motionRocking (seesaw)
Shaker speed5 - 100 rpm
Temperature control rangeAmbient to 85°C
Temperature increment0.1°C
Temperature uniformity± 0.2°C at 37°C
Temperature accuracy± 0.2°C at 37°C
User temperature calibrationYes
Inner chamber dimension
340 mm x 225 mm x 260 mm
(W x D x H)
Inner chamber volume            20 L
Overall dimensions
442 mm x 462 mm x 452 mm
(W x D x H)
Platform dimensions
270 mm x 200 mm
(W x D)
Data loggingRS-232
Weight29 Kg
Rated voltage110/220 VAC ~ 50/60Hz (selectable)
ConstructionPainted iron metal: ABS front door
Safety deviceSafety door switch
Thermal safety switch
Auto shut off upon fan failure
Power failure auto recovery
