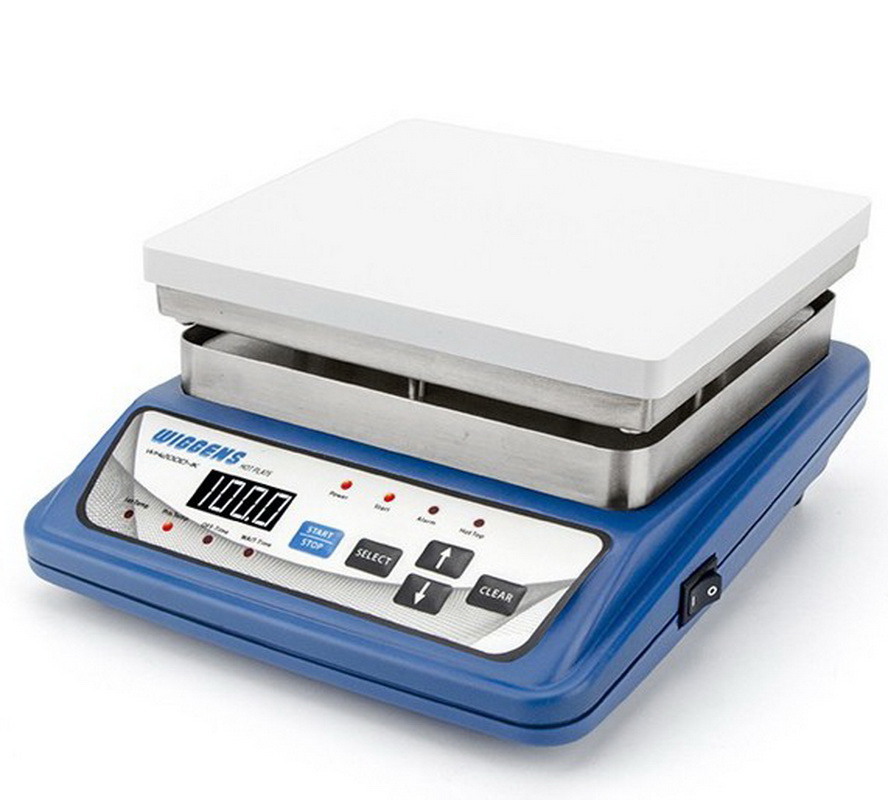

400110.01 | Hot plate with timer function and PID temperature control technology (WH200D-1K)








Key Features

  • PID temperature control technology for accurate and reliable results
  • Suitable for complicated temperature control requirements
  • Bright LED screen displays set value and actual temperature
  • Convenient temperature setting via on-touch control
  • Timer function for automatic heating up to 100 hours
  • Alarm signal output which can be applied to stop the operation of the hot plate and other connected devices
  • External PT100 temperature sensor connection for direct and precise control of the actual temperature (PT100 sensor included with purchase)

Description

The Wiggens WH200D-1K digital hot plate features advanced PID technology to ensure accurate and reliable temperature control. It has an LED display and an alarm system that can stop the operation of the hot plate and connected devices. The hot plate is constructed of aluminium coated with ceramic for easy cleaning.

The unit features on-touch control of temperature setting and a timer function for automatic heating for up to 100 hours. The WH200D-1K has the capacity to meet complicated temperature control requirements and the PT100 temperature sensor that is included with the purchase of the WH200D-1K can be integrated with the unit to provide direct and precise control of actual temperature.

More Information

The following items are included with the purchase of the WH200D-1K:

Part Number
Product Description
400110
WH200D-1K digital hot plate
PT100-01
PT100 temperature sensor (Type 1)
Length: 170 mm
Diameter: 4 mm
Material: Stainless steel
Operating range: -30 to +300°C
PT100-05
Holder and clamp for PT100 temperature sensor


Optional Accessories

Part Number
Product Description
PT100-02
PT100 temperature sensor, Type II
Length: 300 mm
Material: Stainless steel
Operating range: -30 to ~+300°C
PT100-03
PT100 temperature sensor, Type III
Length: 170 mm
Material: Stainless steel, PTFE-coated
Operating range: -30 to ~+250°C
PT100-04
PT100 temperature sensor, Type IV
Length: 300 mm
Material: Stainless steel, PTFE coated
Operating range: -30 to ~+250°C
PT100-06
PT100 temperature Sensor, Type VI
Length: 250 mm
Diameter: 4 mm
Material: Glass
Temperature range: -30ºC ~+300°C

Specifications

Manufacturer
Wiggens
Model No.
WH200D-1K
Hot plate material
Aluminium coated with ceramic
Display mode
LED
Timer function
Up to 100 hours
Temperature stability
±2ºC
Hot plate temperature range
50ºC - 300ºC
Power
680 W
Hotplate dimensions (W x L)
170 mm x 170 mm
Instrument dimensions (W x L x H)
240 mm x 280 mm x 70 mm
