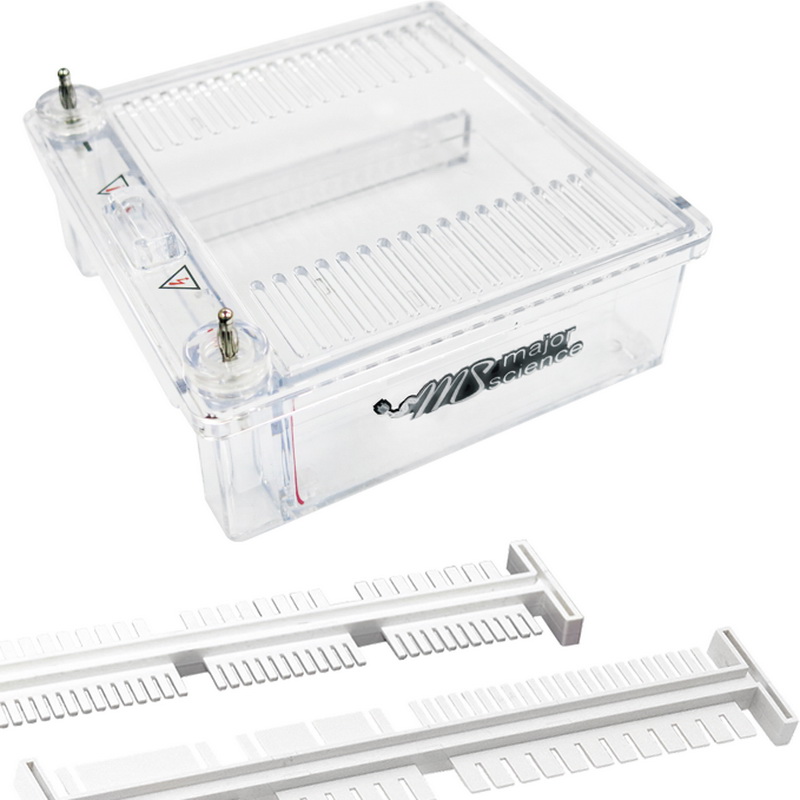

MJ-105A | Horizontal gel electrophoresis system for up to 25 samples

Key Features

  • Less agarose and running buffer consumption
  • Easy sample loading and multichannel pipette-compatible
  • Transparent molded tank and transparent lid
  • Ventilated lid for increased safety
  • High temperature capability
  • Indicators for gel making and running (black well-visualization strip and migration distance index line)
  • No tapes, clamps or springs needed for gel casting
  • Cast six agarose gels at a time


The MJ-105A horizontal gel electrophoresis system from Major Science offers many advantages for nucleic acid separation. Agarose gels are convenient to cast and samples are easy to load. Its molded design prevents cracks and leakages and the polycarbonate construction allows it to be used at temperatures up to 130°C. The safety interlock cover is designed to prevent electrical hazards during electrophoresis.

The MJ-105A is ideal for applications including Northern and Southern blotting, cosmid library restriction analysis, STS screening, microsatellite analysis, PCR fragment analysis, RFLP analysis, DNA finger-printing and high throughput analysis.

Electrophoresis Power Supplies

If you need an electrophoresis power supply to go with your electrophoresis tank then please click here.

More Information

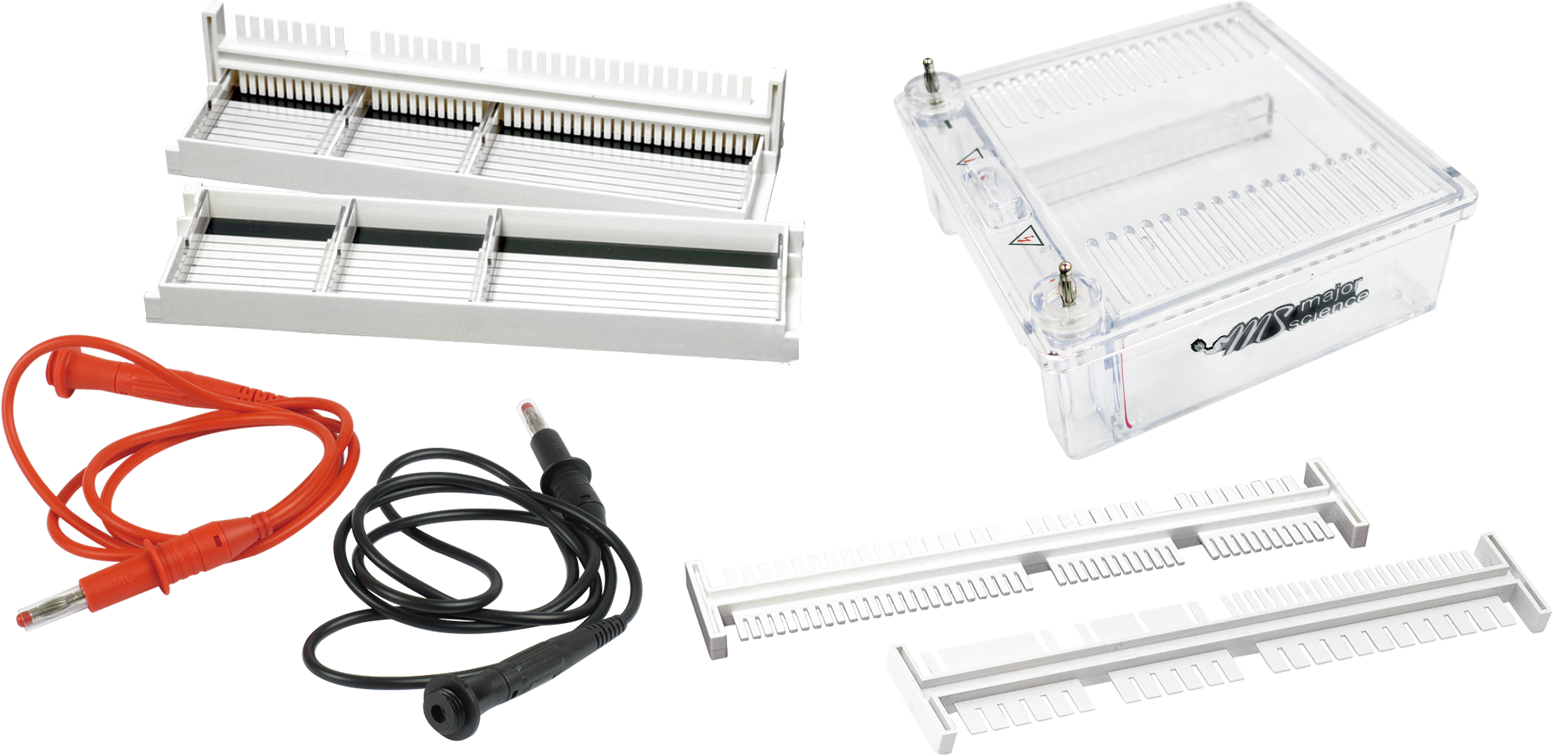

The MJ-105A is sold as a complete system for the end-user to cast gels and run electrophoresis. The system includes:

  • 1 x MJ-B01-A | transparent tank and transparent lid
  • 2 x MJ-G01 | gel maker stand
  • 2 x MJ-T02 | 107 mm x 60 mm tray
  • 4 x MJ-T01 | 52 mm x 60 mm tray
  • 1 x MJ-C01 | double-sided comb (2 x 8 teeth: 1 x 17 teeth; 2 x 12 teeth: 1 x 25 teeth)
  • 1 x MT-C03 | double-sided comb, multipipette-compatible (1 x 23 teeth: prep 1 & marker 2: prep 2 & marker 2: 2 x 6 teeth for mini gel: 1 x 12 teeth for midi gel)
  • 1 x black & red electrophoresis cable


Major Science
Catalog Number
Transparent tank and lid
Tank and lid material
Temperature capacity
Up to 130ºC
Gel Dimensions (W x L)
52 mm x 60 mm | 107 mm x 60 mm
Agarose level
5 mm
Maximum gel thickness
10 mm
Maximum number of samples
Buffer volume
200 mL
Operating temperature
4ºC - 40ºC
Dimensions (W x L x H)
148 mm x 146 mm x 59 mm
0.5 Kg
