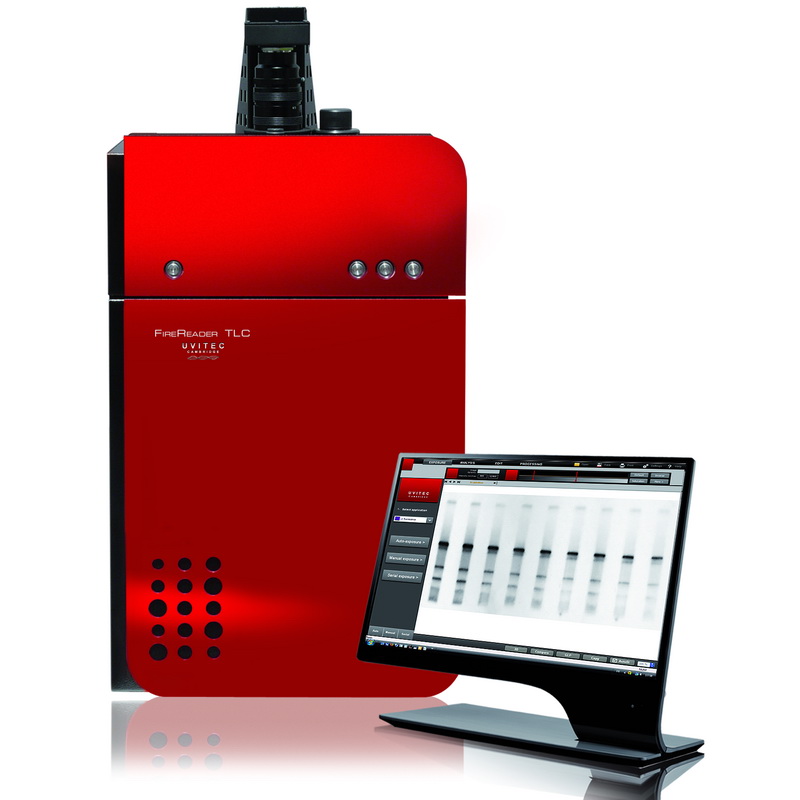

1041 2110 1 | UVITEC FireReader TLC thin layer chromatography documentation system with 6 megapixel scientific grade camera and 21 CFR Part 11 compliance








Key Features

  • 6 megapixel scientific grade camera with 65536 gray scales
  • Ideal for capturing images of TLC/HPTLC plates
  • f/1.2 aperture fully automated lens (zoom and focus) provides superb sensitivity for low signal plates
  • 254 nm, 365 nm and white light illumination sources
  • Stainless steel construction with epoxy coating for increased chemical resistance
  • Slide-out sample table with positioning clip
  • 16 bit pixel depth and 4.0 OD dynamic range
  • 21 CFR Part 11 compliance
  • Saturation control
  • Post-acquisition editing and annotation of captured images
  • Image comparison
  • Full GMP compatibility
  • An unlimited free license (with free upgrades) for the UVI 1D image acquisition and analysis software is included with the imager
  • 2 year full manufacturer's warranty

Description

The FireReader TLC from UVITEC is a powerful, fully automated TLC documentation system with direct UV 254 nm, UV 365 nm and white light illumination. The 6 megapixel 16 bit scientific grade camera is features a highly sensitive, fully automated lens that provides superb sensitivity for TLC/HPTLC plates.

The FireReader TLC is 21 CFR Part 11 compliant which makes it ideal for a pharmaceutical or biotechnology environment. The 21 CFR mode is a closed system which ensures data security and integrity using the following processes:

  • The image data is saved in a document which contains all the actions taken to obtain this image
  • The saved image document is in a proprietary file format which can be opened only with appropriate software set in 21 CFR mode
  • Data is saved with the user security of the signed-in user
  • Records created on a 21 CFR 11 system cannot be opened on a non-21 CFR 11 system

The complimentary FireReader 1D software is easy to use yet sophisticated enough to allow ultra-precise optimization when capturing an image. The software is designed to minimize saturation of the image to ensure that all bands in the captured image are quantifiable. The FireReader 1D software also offers a full suite of image manipulation, annotation, archiving and analysis tools.

A "compare" function incorporated into the FireReader 1D software makes it possible for several images to be compared in a single view. This allows, for instance, a 254 nm UV image from a TLC plate to be directly compared with the 365 nm UV image from the same plate or two images from different plates to be viewed simultaneously. The software also makes it possible to combine two different images (e.g. an image of the 254 nm bands with an image of the 365 nm bands) into one image and use pseudo colour to distinguish the different bands.

Specifications

 Manufacturer
UVITEC
 Model number
FireReader TLC
 Resolution
6 megapixels
 Aperture
f/1.2
 Lighting
254 nm, 365 nm and white light illumination sources
 Dynamic range
4.0 orders of magnitude
 Pixel depth
16 bit
 Intensity range
65536 grey scales
