MEBM10 | Electro blot system for up to five blots

Key Features

  • Ideal for wet electroblotting of proteins
  • Hinged cassettes for added convenience
  • Accommodates gel thicknesses from 0.25 mm to 3 mm

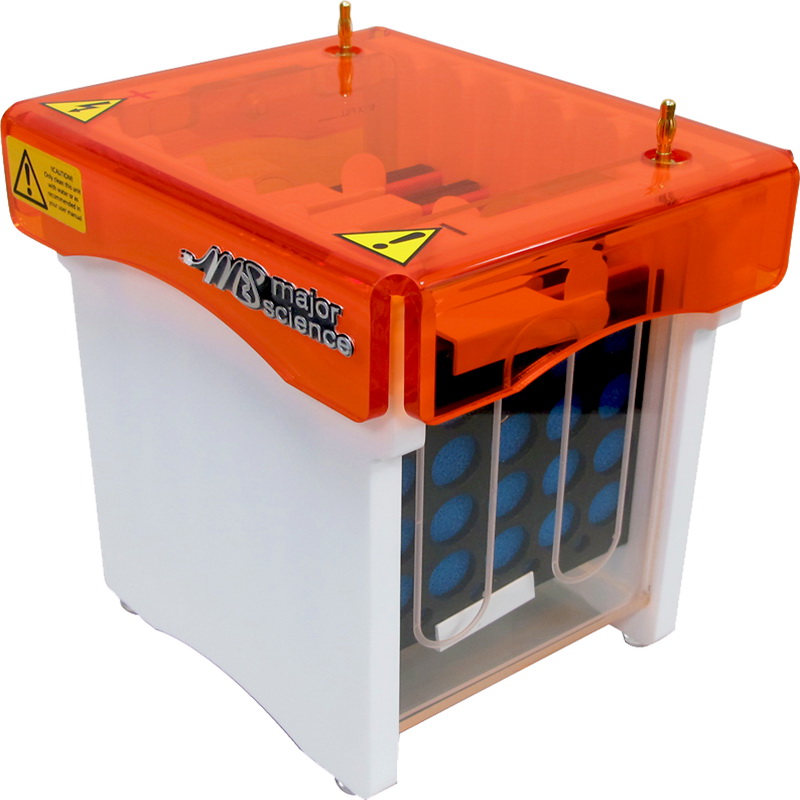

The MEBM10 Mini electro blot system from Major Science has been primarily developed  for wet electrophoresis of proteins. Its large capacity allows up to five gel blot cassettes to be processed at a time.

The MEBM10 creates an electric field through a high intensity coiled electrode that creates uniform transfer across the blot surface. The cassette’s open architecture and rigid construction ensures that contact between the gel and membrane is retained throughout the blot and that an even pressure is maintained.

This unit is compatible with magnetic stirrers to aid heat dispersal and prevent pH drifts in the buffer due to incomplete buffer mixing. The MEBM10 is supplied with a cooling pack to further enhance transfer efficiency by removing excess heat.

More Information

The MEBM10 is sold with the following components:

  • Electro Blot Mini system including tank and lid
  • 5 x cassettes
  • 1 x cooling pack
  • 16 x fibre pads


Catalog numberMEBM10
Dimensions (W x D x H)190 mm x 130 mm x 190 mm
Gel dimensions (W x D)
100 mm x 100 mm
Maximum number of samples
5 blots, 100 mm x 100 mm
Gel thickness range
0.25 mm - 3 mm
Buffer volume1000 mL - 1500 mL
Ice cooling pack
Cassette type
Tank lid can only be fastened in one way on tank. Power disconnects from buffer chamber when lid removed.
