EC-02 | Maestrogen eCooler portable cooling system for PCR microtubes and microplates








Key Features:

  • Efficient: consists of a Peltier-controlled cooling unit with removable sample compartment and user-interchangeable sample blocks
  • Ideal for PCR and cellular applications; compact for use in biological safety cabinets and fume hoods
  • Highly flexible: designed for cooling 96 well PCR plates, 0.2 mL and 1.5 mL microcentrifuge tubes, and tube strips without ice
  • Rapid cooling: takes less than 10 min to cool from ambient temperature to below 4oC
  • Portable: Removable sample compartment maintains temperature below 4oC for more than 25 minutes without cooling unit
  • Quiet operation: noise level 19 dB(A)
  • Reduced environmental impact: uses 80% less energy compared to making equivalent amount of ice required for similar cooling capability
  • Improves sample management and integrity: samples are organized in blocks and not in contact with wet ice.

Description

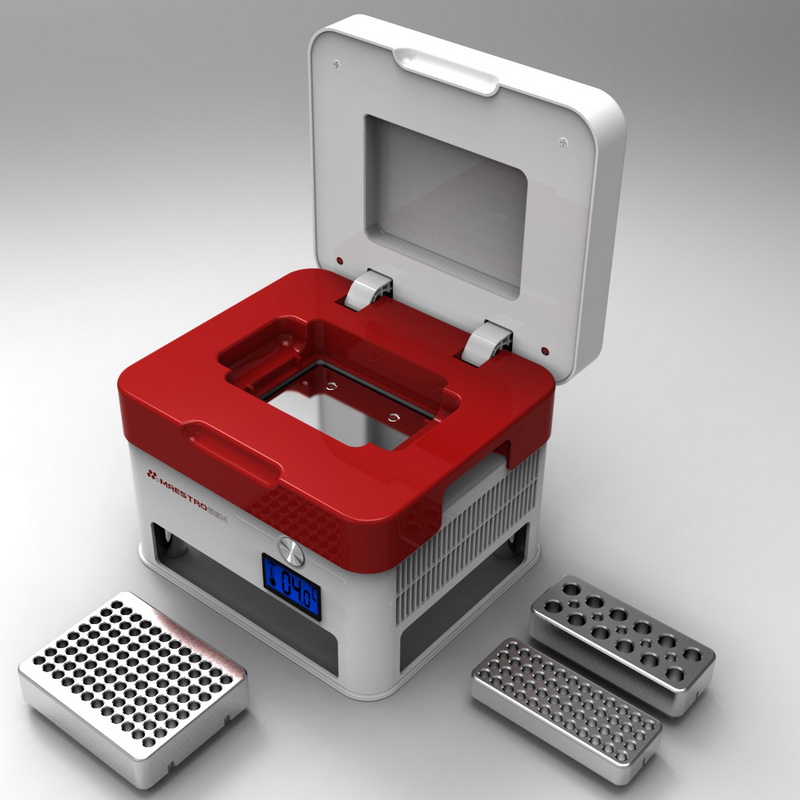

The Maestrogen eCooler portable cooling system makes ice a thing of the past for PCR set up and cellular applications. Just turn it on and the Peltier-controlled cooling unit will rapidly cool the sample compartment to less than 4oC in under 10 minutes.

The sample compartment holds blocks for individual 0.2 mL or 1.5 mL microcentrifuges, tube strips or PCR microplates and can be removed from the cooling unit and used anywhere on your bench or in a fume hood or workstation.

The eCooler is simple and quiet to use. Just press the ON button and the unit will begin the cool-down process. The dry cooling process improves sample integrity as samples and reagents are not in contact with wet ice and the use of sample blocks improves sample management.

More Information

When you purchase the eCooler system (EC-02) the Peltier-controlled cooling unit and the following items are included:

Part NumberDescription
EC-02-SSample compartment to hold EC-01-15, EC-01-02 and EC-02-96 sample blocks
EC-02-96 Sample block for 96 well PCR microplates*
EC-01-15Sample block for 12 x 1.5 mL/5 x 0.2 mL microcentrifuge tubes
EC-01-02Sample block for 48 x 0.2 mL microcentrifuge tubes


*This sample block fits most 96 well PCR plates except full-skirted 96-well PCR plates.

Specifications

Manufacturer
Maestrogen
Cooling device
Two Peltier chips
Power supply
12 VDC adapter
Steady state temperature
-0.5 ±0.5oC
Temperature accuracy
±1oC
Cooling speed
10 min from RT to below 4oC
Temperature maintenance
(without cooling module)
<4oC for >25 minutes
Noise
19 dB(A)
Temperature display
LCD
Dimensions (W x D x H)
170 mm x 220 mm x 190 mm
Weight
2.2 Kg without sample blocks
