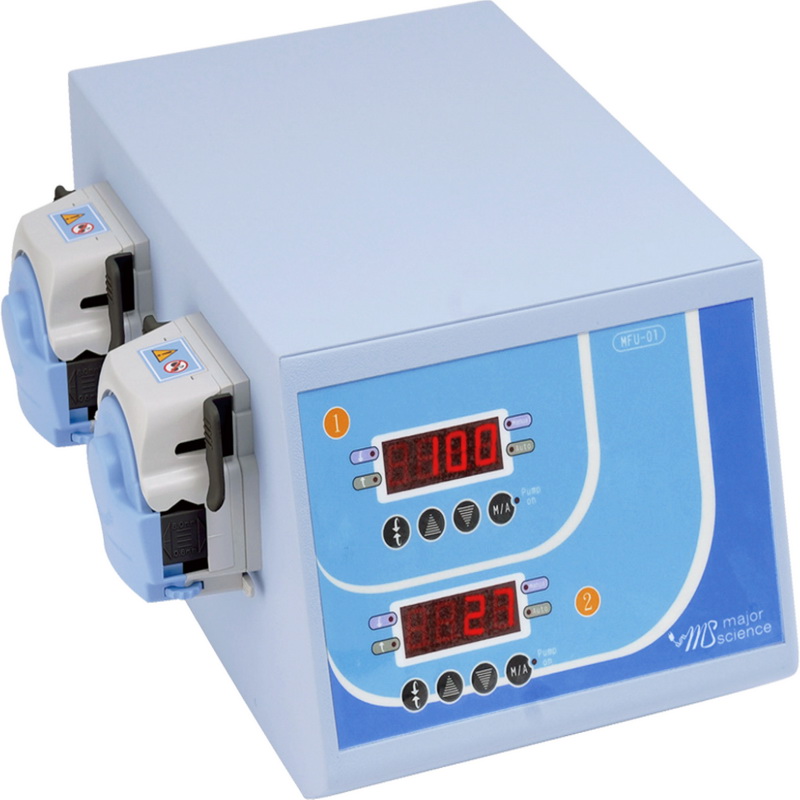

MFU-01 | Dual head digital peristaltic pump with maximum flow rate of 380 mL/min per pump








Key Features

  • Two high quality Verderflex easy-load pump heads
  • Independent and precise digital control of each pump head
  • Individual timer with alarm function
  • Compact and portable
  • Reversible for purging purposes
  • Flow rate from 0.6 mL - 380 mL/min per pump head (depending upon tubing diameter)

Description

The MFU-01 peristaltic pump from Major Science is equipped with two pump heads that can be controlled separately. A digital microprocessor provides highly accurate control of pump speed and each pump is fitted with a timer with alarm function.

The MFU-01 can be used for a wide range of applications including filtration, circulation, sampling, chemical spraying, dispensing, transferring, feeding and filling. The easy-to-use pump design allows for several different silicon tubing sizes to be fitted onto the unit to provide a wide range of flow rates from which to choose. Pump direction is reversible for purging purposes.

Specifications

Manufacturer
Major Science
Model numberMFU-01
ControllerDigital microprocessor
MotorStepping motor
Power100 W
Pump speed range/ increment1 rpm - 100 rpm/ 1 rpm
Maximum pump speed100 rpm
Variable flow rate0.6 mL - 380 mL/min per pump head depending upon tubing diameter
Timer99 Hr:59 min:59 sec
Number of rollers3
Number of peristaltic pumps2
Operating temperatureAmbient to 40ÂșC
Dimensions (W x D x H)265 mm x 340 mm x 180 mm
ConstructionPainted iron metal
Weight5.7 Kg
Voltage240 V: 50 Hz
