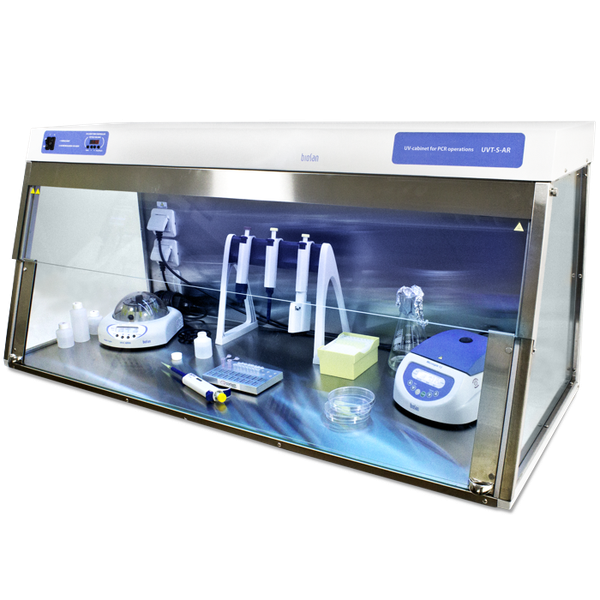

L020-XL-GC | UV workstation for nucleic acid decontamination and PCR set up (extended length version)








Key Features

  • Provides ozone-free high density UV decontamination
  • Stainless steel and glass panel construction
  • Long-life UV lamps (~9000 hours)
  • 2 x 30 watt open UV lamps emitting at 254 nm for pre-amplification decontamination
  • 1 air cleaner-recirculator system with UV lamp that provides constant decontamination inside the cabinet during operation
  • 1 x 30 watt white light lamp
  • Lower part of glass front panel lifts up for access to the cabinet interior
  • UV safety interlock is built into the cabinet that turns off the UV light if the cabinet door is opened
  • 3 built-in power sockets to allow centrifuges, vortexers, etc. to be used in the workstation

Description

The UVT-S-AR UV workstation from BioSan has been designed to decontaminate reagents and equipment of nucleic acids prior to PCR set up. Two open UV lamps emitting at 254 nm denature nucleic acids in 15-30 minutes making them unsuitable for amplification and therefore eliminating the possibility of cross-contamination during the PCR process.

For additional denaturing/ cleaning power the workstation includes a bactericidal air cleaner-recirculator enclosure with UV lamp, fans and inlet and outlet filters that provides constant decontamination inside the cabinet during operation. The cabinet is also equipped with a white lamp for illumination.

The lower part of the cabinet front panel lifts up to provide access to the interior and a UV safety interlock turns off the UV light when the panel is opened. The cabinet has three built-in power sockets to allow centrifuges, vortexers, etc. to be used in the workstation.

The front and side glass panels are coated with a protective film that blocks >96% of UV emissions. The workstation stands on an easy to clean stainless steel tray.



Specifications

Manufacturer
BioSan
Model number
UVT-S-AR
Construction
Back panel: stainless steel | side and front panels: glass | working surface : stainless steel
Open UV lamp2 х TUV 30 W G13 UV-C
Cleaner-recirculator UV lamp1 х TUV 30 W G13 UV-C
White light lamp1 х TLD  30 W G-13
UV radiation level
15 mW/cm²/second
Radiation type
253.7 UV: ozone-free
Timer range for direct UV exposure (open lamp)
1 minute to 24 hours in 1 minute increments or continuous
Panel thicknessSide panels: 4 mm | upper front panel: 8 mm | protective screen: 5 mm
Optical transmission95%
UV blocking96%
Internal sockets for instrument power cords3: up to maximum of 1000 W
Working area1210 mm x 500 mm
Opening dimensions (protective screen fully raised)1210 mm x 190 mm
Overall dimensions (W x D x H)1250 mm x 600 mm x 590 mm
Weight68 Kg
Power consumption135 W
Power requirements100 - 240 VAC; 50/60 Hz
