L020-GC | UV workstation for nucleic acid decontamination and PCR set up (standard length version)








Key Features

  • Provides ozone-free high density UV decontamination
  • Stainless steel and glass panel construction
  • Long-life UV lamps (~9000 hours)
  • 1 x 25 watt open UV lamp emitting at 254 nm for pre-amplification decontamination
  • 1 air cleaner-recirculator system with UV lamp that provides constant decontamination inside the cabinet during operation
  • 1 x 15 watt white light lamp
  • Lower part of glass front panel lifts up for access to the cabinet interior
  • UV safety interlock is built into the cabinet that turns off the UV light if the cabinet door is opened
  • 1 built-in power socket
  • Port in back of unit allows cables from vortexers and other equipment to be plugged into external sockets

Description

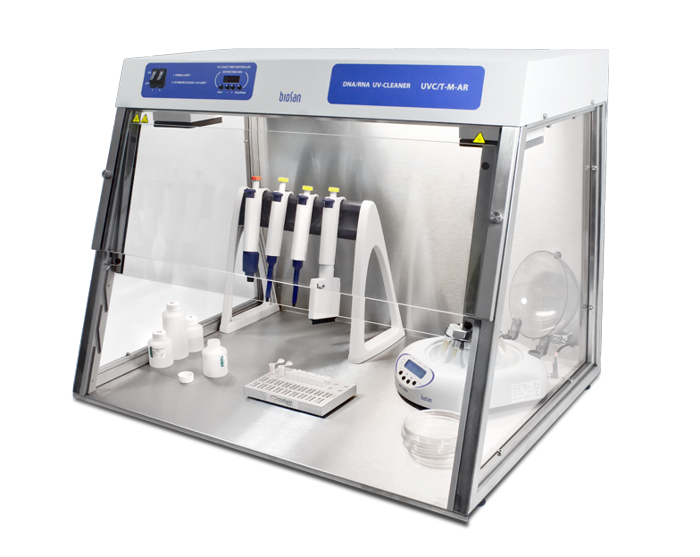

The UVC/T-M-AR UV workstation from BioSan has been designed to decontaminate reagents and equipment of nucleic acids prior to PCR set up. An open UV lamp emitting at 254 nm denatures nucleic acids in 15-30 minutes making them unsuitable for amplification and therefore eliminating the possibility of cross-contamination during the PCR process.

For additional denaturing/ cleaning power the workstation includes a bactericidal air cleaner-recirculator enclosure with UV lamp, fans and inlet and outlet filters that provides constant decontamination inside the cabinet during operation. The cabinet is also equipped with a white lamp for illumination.

The lower part of the cabinet front panel lifts up to provide access to the interior and a UV safety interlock turns off the UV light when the panel is opened. There is one built-in power socket and a port in the back wall of the unit that allows cables from additional centrifuges, vortexers, etc. to be plugged into external sockets.

The front and side glass panels are coated with a protective film that blocks >96% of UV emissions. The workstation stands on an easy to clean stainless steel tray.

Specifications

Manufacturer
BioSan
Model number
UVC/T-M-AR
Construction
Back panel: stainless steel | side and front panels: glass | working surface : stainless steel
Open UV lamp1 х TUV 25 W G13 UV-C
Cleaner-recirculator UV lamp1 х TUV 25 W G13 UV-C
White light lamp1 х TLD 15 W G-13
UV radiation level
15 mW/cm²/second
Radiation type
253.7 UV: ozone-free
Timer range for direct UV exposure (open lamp)
1 minute to 24 hours in 1 minute increments or continuous
Panel thicknessSide panels: 4 mm | upper front panel: 8 mm | protective screen: 4 mm
Optical transmission95%
UV blocking96%
Internal sockets for power cords1: up to maximum of 1000 W
Working area645 mm x 490 mm
Opening dimensions (protective screen fully raised)645 mm x 190 mm
Overall dimensions (W x D x H)700 mm x 580 mm x 555 mm
Weight39 Kg
Power consumption67 W
Power requirements100 - 240 VAC; 50/60 Hz
