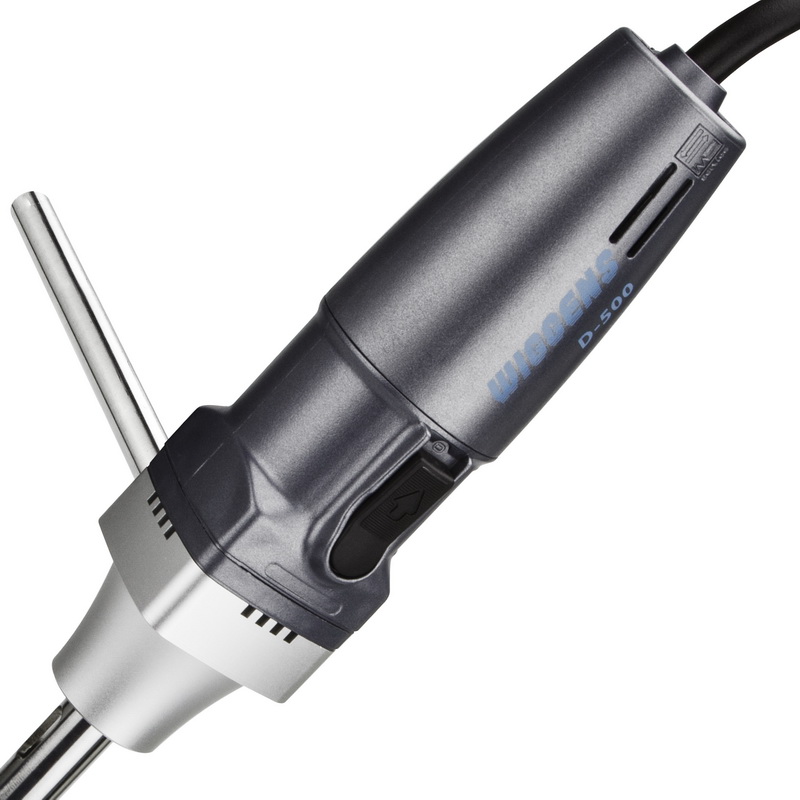

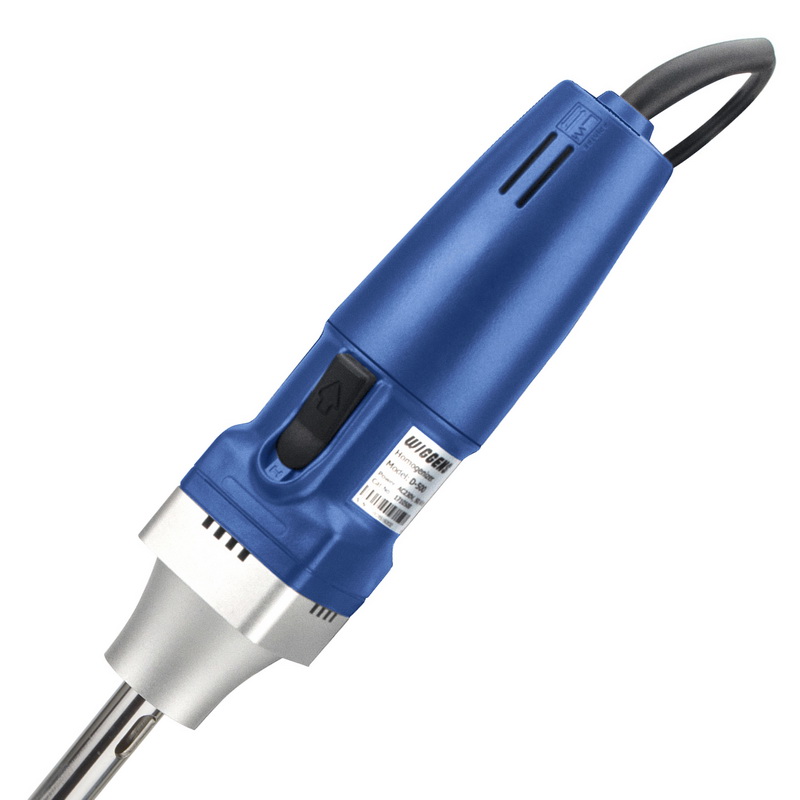

1710500 | D-500 high speed homogeniser with 10000 rpm - 30000 rpm speed range and processing capacity from 10 mL to 40 L

Key Features

• Adjustable speed range from 10000 rpm - 30000 rpm
• Processing volume range from 10 mL - 40 L of water depending upon the probe that is used (please see probe options below)
• Lightweight and compact for better handling
• Safety features including overload protection, smooth start-up and safety switch
• Wide range of stainless steel probes available (please see below)
• Quick-change system for switching probes for different applications
• Ideal for high viscosity solutions up to 10000 cP
• One probe shaft size

Description

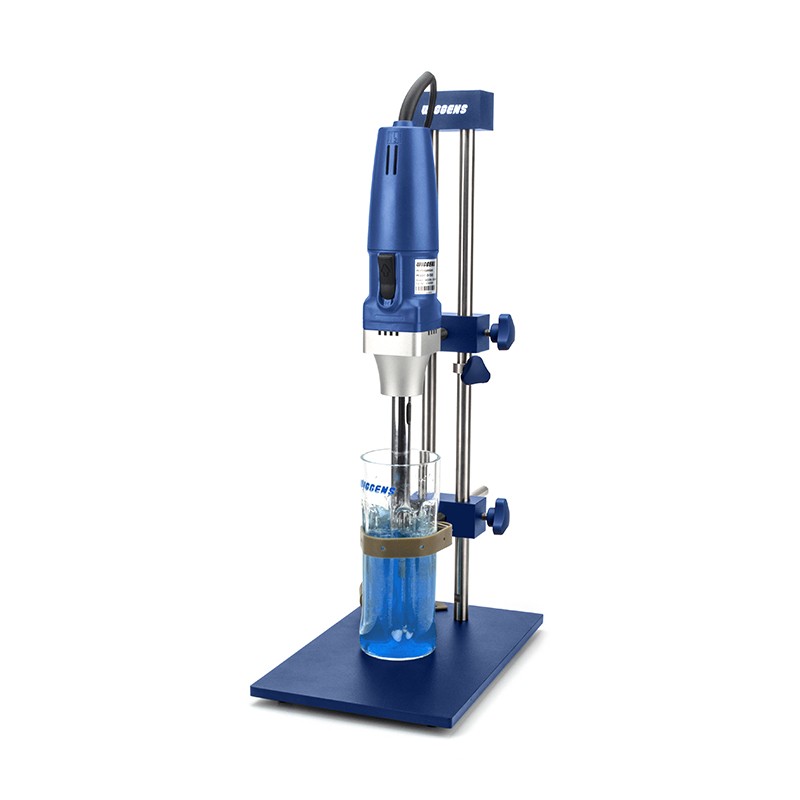

The D-500 high speed homogeniser is ideal for homogenising, emulsifying and suspending. It is light enough for hand-held operation but can also be stand-mounted for longer homogenisations.

A wide range of stainless steel probes can process samples in volumes from 10 mL - 40 L based on their use in water. An adjustable speed range from 10000 - 30000 rpm and a powerful motor allows the D-500 to be used with high viscosity solutions up to 10000 cP (e.g. honey).

Optional Accessories

Part Number	Item Description
Probes
Shaft 5	Probe for D-500 homogeniser, 0.2 mL - 50 mL processing volume | suitable for solid/liquid mixing
Shaft 10	Probe for D-500 homogeniser, 1 mL - 250 mL processing volume | suitable for solid/liquid mixing
Shaft 14	Probe for D-500 homogeniser, 100 mL - 1 L processing volume | suitable for solid/liquid mixing
SS30FMR30	Probe for D-500 homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30CMR20	Probe for D-500 homogeniser, 250 mL - 20 L processing volume | paddle stirring
SS20FMR20	Probe for D-500 homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
SS30CSR30	Probe for D-500 homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30CCR30	Probe for D-500 homogeniser,  100 mL - 8 L processing volume | suitable for fibrous material
SS30FSR30	Probe for D-500 homogeniser,  100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS20FCR20	Probe for D-500 homogeniser,  10 mL - 5 L processing volume | suitable for fibrous material
SS20CSR20	Probe for D-500 homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
SS20FER20	Probe for D-500 homogeniser,  10 mL - 5 L processing volume | suitable for biological membranes (lattices)
SS20CCR20	Probe for D-500 homogeniser,  10 mL - 5 L processing volume | suitable for fibrous material
SS30CMR30	Probe for D-500 homogeniser, 100 mL - 8 L processing volume | suitable for solid/liquid mixing
SS30FER30	Probe for D-500 homogeniser,  100 mL - 8 L processing volume | suitable for biological membranes (lattices)
SS20CMR20	Probe for D-500 homogeniser, 10 mL - 5 L processing volume | suitable for solid/liquid mixing
Stands
WH11-S	Single rod stand with H-shape base for D-500 homogeniser | Height: 550 mm
WH12-S	Single rod stand with H-shape base for D-500 homogeniser | Height: 750 mm
WH13-S	Single rod stand with H-shape base for D-500 homogeniser | Height: 950 mm
WF11-D	Double rod stand with rectangular shape base for D-500 homogeniser | Height: 550 mm
WF12-D	Double rod stand with rectangular shape base for D-500 homogeniser | Height: 750 mm
WF13-D	Double rod stand with rectangular shape base for D-500 homogeniser | Height: 950 mm

Specifications

Manufacturer	Wiggens
Model Number	D-500
Speed (with zero load)	10000 rpm - 30000 rpm
Processing range (based on use in water)	10 mL - 40 L (depending on probe)
Suitable starting particle size	4 mm - 23 mm
Noise level	72 dB at 30000 rpm
Supply voltage	220 VAC 50/60 Hz
Ambient temperature operating range	0°C - +40°C
Maximum operating relative humidity	80%
IP code	IP 20
Input power	500 W
Weight	1.3 Kg
Contact material	316L stainless steel/PTFE
Dimensions (W x D x H)	70 mm x 70 mm x 255 mm
