BS-010412-AA3 | Combi dry block heater with capacity for 49 microtubes of various sizes (Bio TBD-100)

Key Features

• Block capacity for 49 microtubes of various sizes
• Can be used with 0.2, 0.5, 1.5 mL and 2.0 mL microtubes
• LCD temperature display and timing range up to 96 hours
• Cycle completion signal

Description

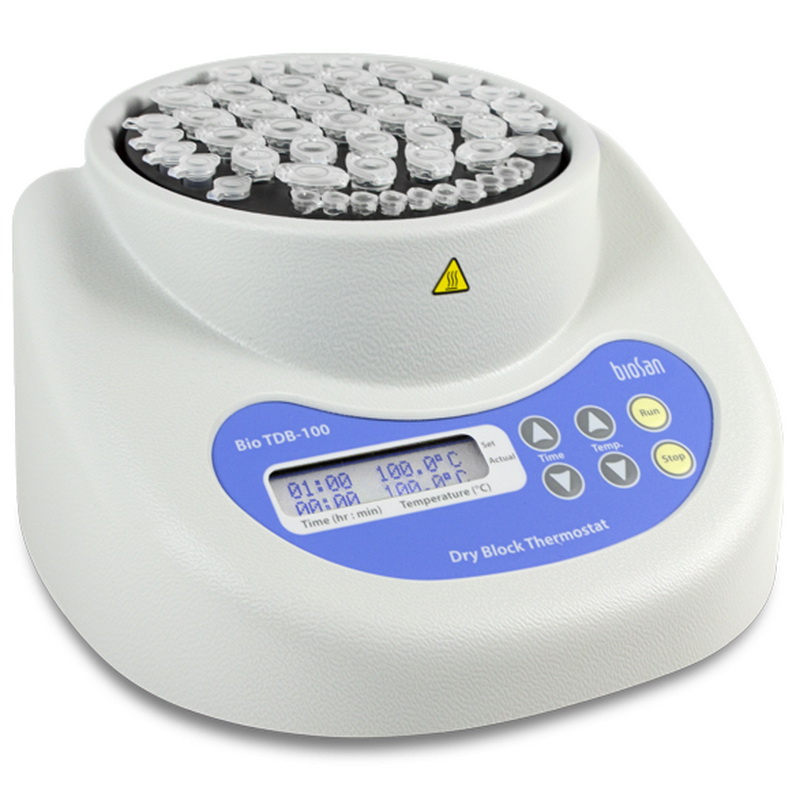

The Bio TDB-100 dry block heat bath from BioSan provides capacity for up to 49 microtubes of various sizes and is ideal for extended operation up to 96 hours. The aluminium block can hold 10 x 0.2 mL, 15 x 0.5 mL and 24 x 1.5 mL or 24 x 2.0 mL tubes.

The heating range for the Bio TDB-100 is from 5°C above ambient to 100°C and the actual and set temperatures are shown on the LCD display. The unit features a timer and an audible signal at the end of a timed run.

Specifications

Manufacturer	BioSan
Model number	Bio TDB-100
Temperature setting range	25°C to 100°C
Temperature setting resolution	0.1°C
Temperature control range	5°C above ambient to +100°C
Temperature stability	±0.1°C
Temperature uniformity at 37°C	±0.1°C
Heating times	From +25°C to +37°C | 4 minutes From +25°C to +100°C | 15 minutes
Timer range	1 minute to 96 hours in increments of 1 minute or continuous
Block tube capacity	10 x 0.2 mL, 15 x 0.5 mL and 24 x 1.5 mL or 24 x 2.0 mL tubes
Block dimensions (Ø x Depth)	130 mm x 45 mm
Instrument dimensions (W x D x H)	210 mm x 230 mm x 115 mm
Display	LCD
Weight	2.8 Kg
Power	230 V: 50/60 Hz
