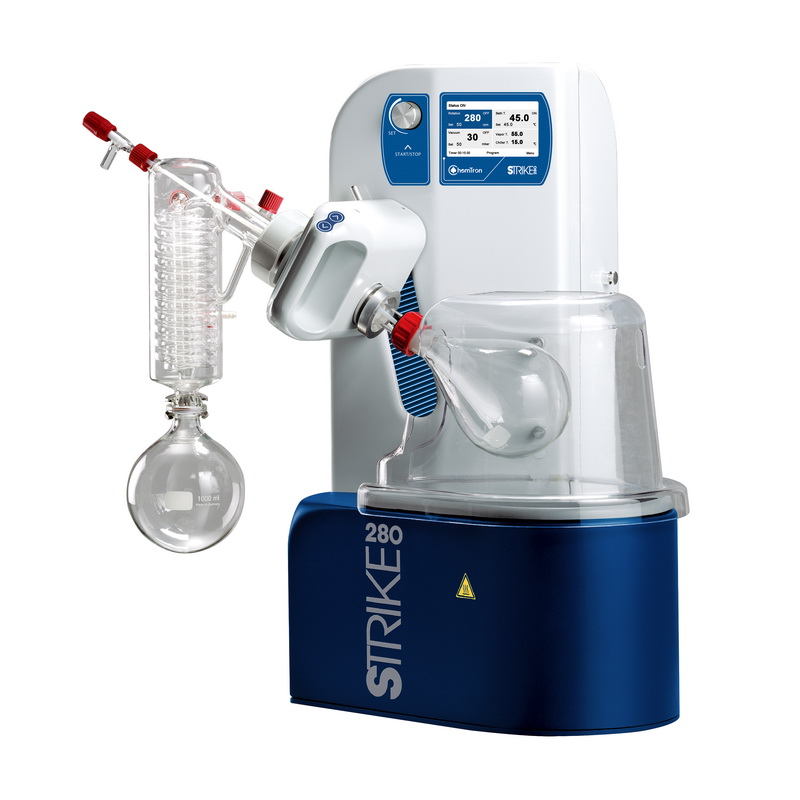

SQED058112 | Strike 280 rotary evaporator with vertical glassware (downward condensing)








Key Features

  • Up to 2 litre evaporating and collecting flask capacity
  • Removable safety shield
  • Fixed head angle
  • Maintenance-free PTFE and carbon graphite seals
  • Powered glassware lifting system with safety release. Operate with or without the safety shield in place.
  • Monochromatic LCD touch screen providing real-time display of basic operating parameters such as bath temperature, rotation speed and working protocol
  • Rodavis evaporation flask connection system
  • USB interface
  • 5 litre aluminium thermostatic heating tank with PTFE coating that can be removed for emptying
  • Rotation speed from 20 rpm to 300 rpm
  • Timer with range from 1 - 999 minutes in 1 minute increments
  • Also available with plastic-coated glassware

Description

The Strike 280 rotary evaporator from ChemTron combines advanced functionality with safety to provide the ideal instrument for the small-scale recovery of solvents in a laboratory environment. Key safety features to protect end-users include:

  • A safety shield over the 5 litre aluminium PTFE-coated heating tank
  • Vacuum-tight and corrosion-resistant Steroglass seals without gaskets to prevent solvent leakage
  • Screw-on evaporation flasks to create a leak-proof linkage between the flask and the through pipe to the unit's condenser
  • Powered glassware positioning system with safety release in case of power failure
  • Adjustable safety temperature

All functions of the Strike 280 are controlled through an LCD touch screen that provides a real-time display of operating parameters such as bath temperature and rotation speed. The Strike 280 can also be controlled by monitoring the fume temperature with an optional PT100 probe.

Heating is provided by a 5 litre capacity aluminium thermostatic heating tank that is coated with PTFE. It can be  removed for emptying and cleaning and has a planar heater on the bottom to protect the operator from electric shock. Solutions in the bath can be heated from ambient to 185°C with options for heating aqueous solutions or oil.

The rotation speed for the Strike 280 can be set between 28 rpm and 300 rpm and the unit features a timer with a range from 1 minute to 999 minutes. Once the time is complete the instrument stops and the flask is lifted out of the thermostatic tank. The rotating head has an adjustable low stop sensor that assists in positioning the evaporation flask at the desired level in the thermostatic tank.

More Information

The following items are included with the purchase of this rotary evaporator:

Part NumberItem Description
SQED058112Rotary evaporator base unit

Aluminium heating tank

Cooling water tubing

Safety shield

Steam through  pipe

Connectors

Power cable
SQEF059796Borosilicate glass condensing unit with internal coil
SQFY015934Borosilicate glass Rodavis evaporating flask, 29/32, 1000 mL capacity
SQUA015796Round collecting flask with spherical joint, 1000 mL capacity
FLMM016694Tightening clamp for collecting flask


Optional Accessories

Part NumberItem Description
Evaporating Flasks
SQFY051170Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 50 mL capacity
SQFY015938Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 100 mL capacity
SQFY015939Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 250 mL capacity
SQFY015940Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 500 mL capacity
SQFY015934Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 1000 mL capacity
SQFY015935Pear-shaped borosilicate glass evaporating flask with threaded cone, RODAVIS RDV 29/32, 2000 mL capacity
Collecting Flasks
SQUA015797Round borosilicate glass collecting flask with spherical joint, 250 mL capacity
SQUA015798Round borosilicate glass collecting flask with spherical joint, 500 mL capacity
SQUA015796Round borosilicate glass collecting flask with spherical joint, 1000 mL capacity
SQUA015792Round borosilicate glass collecting flask with spherical joint, 2000 mL capacity
SQUA015788Round plastic-coated borosilicate glass collecting flask with spherical joint, 250 mL capacity
SQUA015791Round plastic-coated borosilicate glass collecting flask with spherical joint, 500 mL capacity
SQUA015789Round plastic-coated borosilicate glass collecting flask with spherical joint, 1000 mL capacity
SQUA015790Round plastic-coated borosilicate glass collecting flask with spherical joint, 2000 mL capacity


Specifications

Manufacturer
ChemTron
Model number
Strike 280
Rotation speed
20 rpm - 280 rpm
Timer
1 minute to 999 minutes in 1 minute increments
Cooling surface
1500 cm²
Evaporating flask capacity
Up to 2000 mL
Collecting flask capacity
Up to 2000 mL
Display
109 mm monochromatic LCD touch screen
Heating tank capacity
5 litres
Heating tank material
Aluminium with PTFE coating
Heating tank temperature range
Ambient to 185°C with settings for water or oil
Dimensions
690 mm x 790 mm x 430 mm
Weight
26 Kg
Power consumption
1400 W
Voltage
230 VAC: 50 Hz
