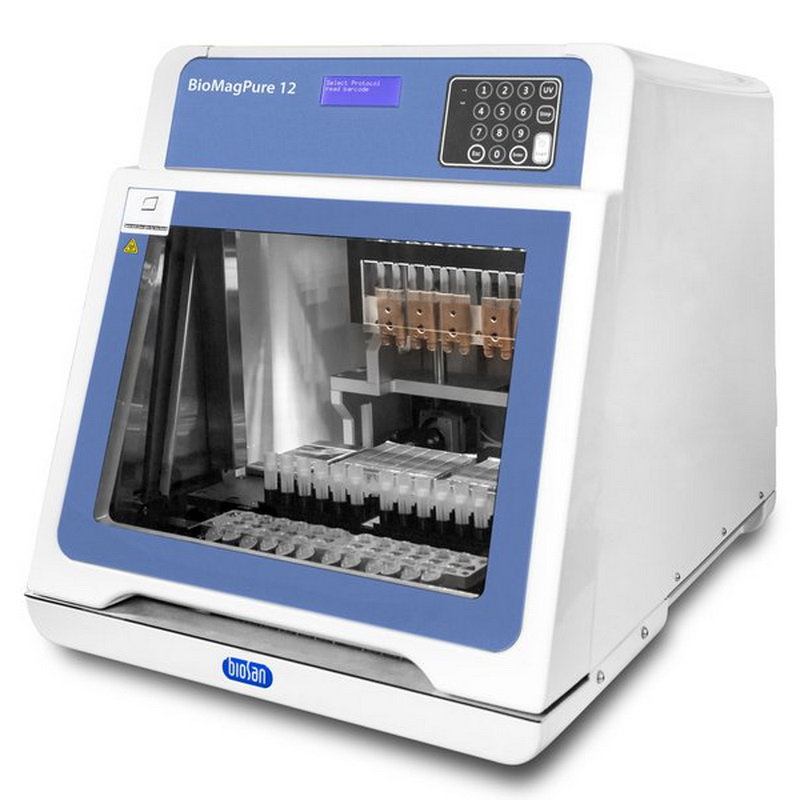

BS-060201 | BioMagPure 12 robotic workstation for automated nucleic acid purification

Key Features

• True walk-away automation makes the BioMagPure 12 ideal for facilities with limited resources
• Uses proven magnetic bead separation technology
• Can process between 1 and 12 samples per run
• Reaction chamber using patented technologies to ensure efficient and consistent lysis and elution
• Piercing pin system significantly reduces the potential for sample cross-contamination
• Stand-alone system requiring no PC
• Wide range of extraction kits available (please see below)

Description

The BioMagPure 12 is a compact bench-top robotic workstation that uses proven magnetic bead separation technology for automated nucleic acid purification. It utilises specially developed extraction kits (please see range of extraction kits below) that incorporate pre-filled reagent cartridges and disposable consumables to enable true walk-away automation that is highly efficient, easy to use, reliable, safe and cost-effective.

The BioMagPure 12 has an ingeniously designed polygonal reaction chamber that uses patented technologies to ensure highly efficient and consistent lysis and elution. A large contact area between the magnet and the heating element maximizes magnetic bead recovery that minimizes residues in the final eluted product. The novel construction of the reaction chamber ensures unrivaled mixing ability that excludes conventional mixing techniques that can cause cross-contamination of samples.

A wide range of kits have been specially developed for the BioMagPure 12 that contain all of the plastics, pre-filled reagent cartridges, incubation buffers and sample pre-treatment solutions that are required for the extraction process. With the capacity for processing up to 12 samples per run the BioMagPure 12 is ideal for small clinics and laboratories  laboratories with limited space and personnel.

Extraction Kits

Part Number	Kit Description
BS-060201-AK	Blood DNA extraction kit 200 Developed for extraction of DNA from 10-400μl mammalian whole blood and suspensions of mammalian blood cells.
BS-060201-BK	Blood DNA extraction kit 1200 Developed for extraction of gDNA from 400-1000μl of mammalian blood and suspensions of mammalian blood cells.
BS-060201-CK	Viral nucleic acid extraction kit Developed  for extraction of viral DNA or RNA from human biological specimens such as serum, plasma and other cell-free fluids.
BS-060201-DK	Tissue DNA extraction kit Developed for  extraction of genomic DNA from  animal tissues, swab samples and blood stains.
BS-060201-EK	Cultured cell DNA extraction kit Developed  for extraction of genomic DNA from culture cells and buffy coat.
BS-060201-FK	Bacterial DNA extraction kit Developed  for extraction of genomic DNA from both Gram-positive and Gram-negative bacteria.
BS-060201-GK	HPV DNA extraction kit for swab Developed for DNA extraction of the human papillomavirus (HPV) from cervical cell samples collected by cervical brush or genital swab in liquid-based medium (e.g. Hologic ThinPrep).
BS-060201-IK	TB DNA extraction kit Developed for extraction of genomic DNA of Mycobaceteria spp. (e.g. Mycobacterium tuberculosis) from different types of specimens.
BS-060201-JK	FFPE DNA extraction kit Developed for extraction of genomic DNA from FFPE (Formalin-fixed, paraffin-embedded) tissue samples. Provides good quality, high integrity DNA for molecular diagnosis and research work.
BS-060201-KK	Forensic DNA extraction kit Developed to extract and isolate genomic DNA from forensic samples.
BS-060201-LK	Viral/Pathogen nucleic acid extraction kit A Developed for  extraction of viral and bacterial DNA/RNA from cell-free samples, such as serum, plasma, and other cell-free body fluids.
BS-060201-MK	Viral/Pathogen nucleic acid extraction kit B Developed for  extraction of viral and bacterial DNA/RNA from swab samples (cell-rich samples).
BS-060201-NK	Viral nucleic RNA extraction kit Developed for extraction of viral RNA from human biological specimens such as serum, plasma, and other cell-free fluids.
BS-060201-OK	Plant DNA extraction kit Developed  for extraction of genomic DNA from plant (leaves, seeds and spores) and fungal tissues. Up to 100 mg of tissue can be used for purification.
BS-060201-PK	Total RNA extraction kit Developed  for extraction of total RNA from whole blood, blood cells, animal tissue, plant tissue, yeast or cultured cells.
BS-060201-QK	Viral nucleic acid large volume extraction kit Developed for extraction of viral DNA or RNA from human biological specimens such as serum, plasma, and other cell-free fluids.
BS-060201-RK	CFC DNA large volume extraction kit Developed for extracting circulating DNA from plasma serum or cell-free body fluids. Samples up to 5 mL can be processed.

Specifications

Manufacturer	Biosan
Model number	BioMagPure 12
Extraction technology	Magnetic bead separation technology
Processing time	45 minutes - 60 minutes
Processing capability	1 - 12 samples per run
Tube volume	1.5 mL - 2.0 mL
Tube type	Eppendorf or equivalent
Protocol	Programmed by scanning barcode
Protocol input	Barcode scanner
Sample volume	10 µL to 2000 µL depending on extraction kit used
Elution volume	50 µL to 400 µL
Connection to PC	Not required
Display	LCD (20 x 4)
Nominal operating voltage	110 V - 240 V | 50/60 Hz
Dimensions (W x D x H)	480 mm x 700 mm x 520 mm
Weight	45 Kg
