FLB-NH-AS-01 | fillBee Automated Filling System for tubes, microplates, slides and Petri dishes

Key Features

• Powerful and highly flexible XYZ robotic system for automatically filling a wide range of labware including tubes, microplates, slides and Petri dishes
• Computer-controlled via single USB connection using
• Single probe filling mechanism
• Intuitive, easy to Apollo set-up software
• Can hold up to 432 tubes per run in three racks of 144 tubes
• Utilises an accurate and maintenance-free piston pump for repeatable volume dispense
• Wide range of dispense volumes
• Swing-up protective screen to reduce the risk of end-user injury while instrument is in operation
• Emergency STOP button with automatic "resume" function
• Overfill prevention feature
• Automated cleaning routine
• Priming trough

Description

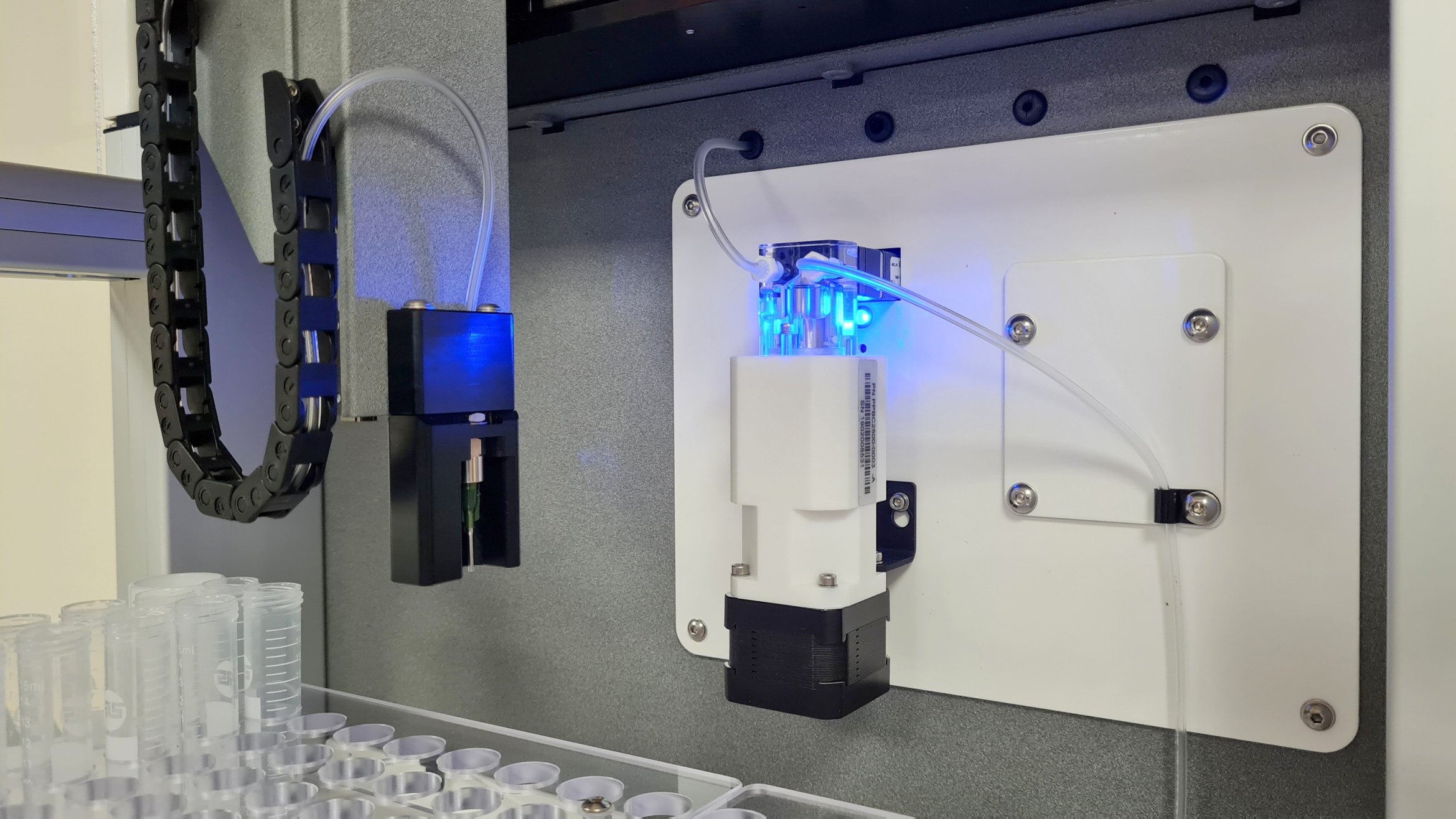

The fillBee automated XYZ filling system is a highly flexible alternative to the tedious and error-prone process of filling labware manually. The fillBee utilises a highly accurate and maintenance-free piston pump with a single probe to repeatably fill a wide range of labware including tubes, microplates, slides and Petri dishes.

The intuitive and easy-to-use set up and control software allows labware to be filled over a wide range of dispense volumes. Tubes can be filled to a maximum of 60 mL and an overfill feature prevents tubes to be filled past their capacity. A protective screen reduces the possibility of injury to personnel while the instrument is in operation.

More Information

Please click here to watch a video of the fillBee during operation.

Specifications

Manufacturer	Bee Robotics
Model number	fillBee
Processing capability	Up to 3 racks
Processing time	Protocol-dependent but typically 25 minutes for 432 tubes
Dispensing mode and accuracy	Piston pump: ±10%
Pump stroke volume	2.5 mL
Processing volume (to single tube)	100 µL to 65 mL
Operating temperature range	15ºc to 30ºC
Humidity range	Maximum relative humidity 80% for temperatures up to 31°C increasing linearly to 50% relative humidity at 40°C.
Dimensions (W x D x H)	820 mm x 650 mm x 600 mm
Weight	35 Kg
Power requirements	100 VAC - 240 VAC: 50/60 Hz
Power	200 W
Noise level	<60 dB
