| Maelstrom Switch 8 automated nucleic acid extraction system with interchangeable gearboxes for 4, 8 or 16 samples

Key Features

• Uses magnetic beads to automate the purification of DNA, RNA, proteins and cells from virtually any source
• Has the capacity to process 4, 8 or 16 samples simultaneously

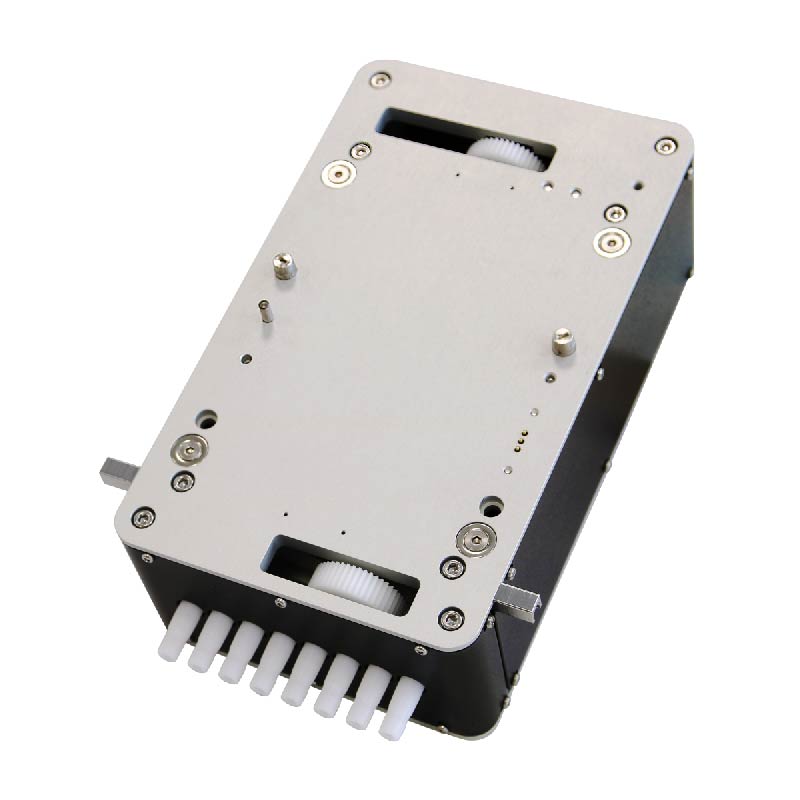

• Utilises easy-to-switch gearboxes and plates for versatile throughput, volumes and applications
• Choice of 2.2 mm, 3.5 mm, 4.2 mm, or 7.5 mm magnetic rods provides a processing range from 50 µL to 9000 µL
• Compatible with most commercially available magnetic bead-based nucleic acid extraction kits
• Compact and portable

Product Description

The compact and portable Maelstrom Switch 8 from TANBead utilises magnetic beads to automate the purification of DNA, RNA, proteins and cells from virtually any source. It features easy-to-switch gearboxes and plates for versatile throughput, volumes and applications and can process 4, 8 or 16 samples simultaneously depending upon which gearbox is used.

A choice of 2.2 mm, 3.5 mm, 4.2 mm, or 7.5 mm magnetic rods provides a processing range from 50 µL to 9000 µL and the Switch 8 is compatible with most commercially available magnetic bead-based nucleic acid extraction kits.

Specifications

Weight	16.5 Kg
Dimensions (W x D x H)	524 mm x 265 mm x 412 mm
Power requirements	AC 100-240 V, 2.3-1.1 A, 50/60 Hz
Fuse	T5A L 250V
Maximum throughput	Low volume | maximum of 16 samples/run High volume | maximum of 4 samples/run
Process volume	Low volume | 50 µL~ 1200 µL High Volume | 100 µL - 9000 µL
Spin speed	500 rpm - 3000 rpm
Heater	One independent heater
Magnetic rod	Low volume | > 3900 gauss High Volume | > 4700 gauss
Display	18 mm touch screen
UV	UV-C
