099.M1301.00C | Maelstrom 2410 automated nucleic acid extraction system with 24 sample capacity for samples up to 10 mL

Key Features

• Utilises patented whirl stirring mixing technology which significantly reduces cross-contamination of adjacent wells compared to other mixing technologies
• Fully automated to avoid human error and to ensure consistent quality
• Can process up to 24 samples simultaneously
• Ideal for applications in molecular diagnostics and life sciences
• Compatible reagent kits available
• Processing volume of up to 10 mL
• Spin tips stir magnetic beads at speeds up to 2500 rpm and magnetic induction of >4700 Gauss

Description

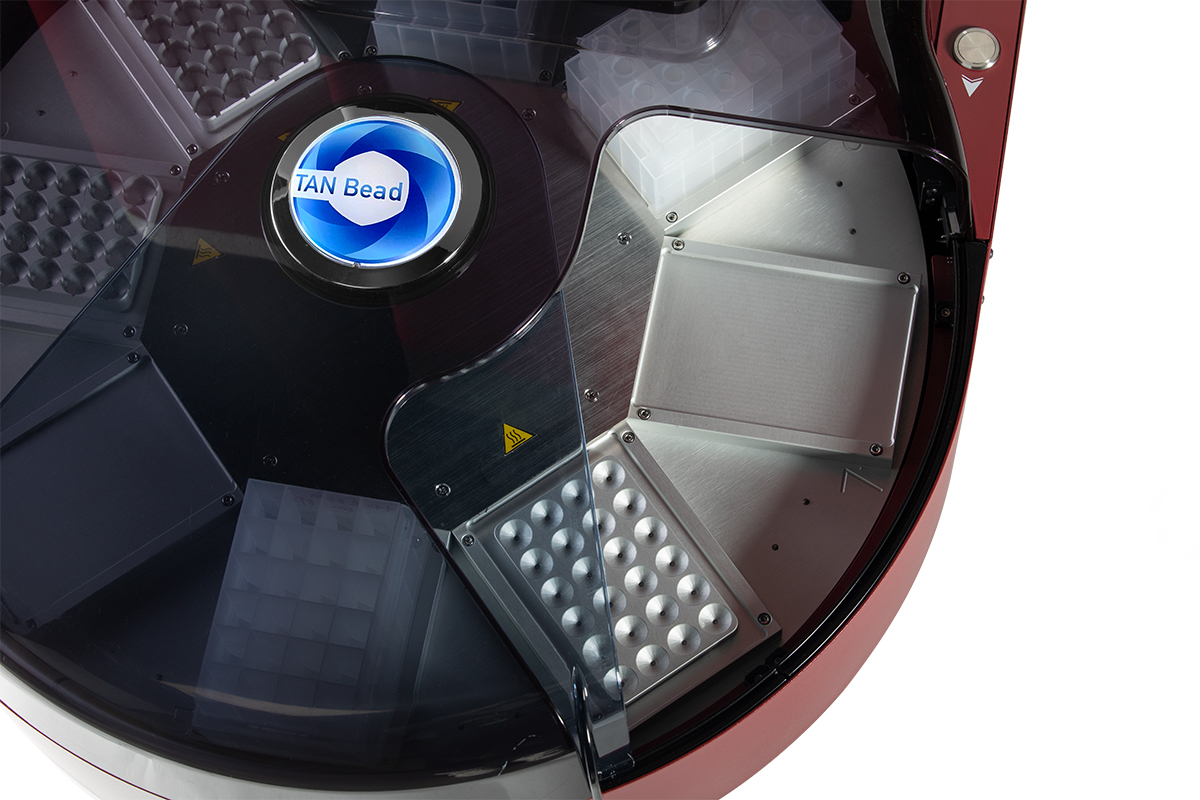

The Maelstrom™ 2410 is a powerful high throughput nucleic acid extraction system designed to process up to 24 samples simultaneously. The instrument utilises specialised spin tips and rods with a magnetic induction of >4700 Gauss to efficiently mix and collect magnetic beads to extract nucleic acid from an extensive range of sample types.

The Maelstrom™ 2410 features a novel spin methodology rather than the vertical mixing technology used in other extraction systems. This approach significantly reduces the risk of cross-contamination between adjacent wells.

The Maelstrom™ 2410 can process samples ranging from 100 µL to 10000 µL .  Simple menu navigation and an intuitive user interface allows for easy end-user parameter selection.

More Information

Please contact Advance Scientific for information on the compatible kits that are available for the Maelstrom™ 2410.

Specifications

Manufacturer	Taiwan Advance Nanotech Inc. (TANBead)
Model number	Maelstrom™ 2410
Samples per run	Up to 24
Processing volume	100 µL to 10000 µL
Magnetic rod	>4700 Gauss
Spin speed	Up to 2500 rpm
Display	180 mm touchscreen
UV	UV-C type:  4 W
HEPA	E10 Class
Heater	4 heating plates
Weight	98 Kg
Dimensions (W x D x H)	890 mm x 575 mm x 775 mm
Power requirements	220 VAC: 50 Hz
