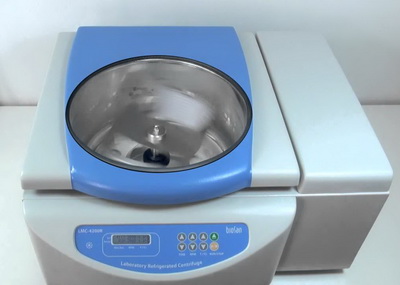

BS-010212-AA3 | Refrigerated laboratory centrifuge for microplates and 10, 15 and 50 mL tubes (LMC-4200R)

Key Features

• Ideal for the refrigerated centrifuging of microplates, gel cards and centrifuge tubes from 10 mL to 50 mL
• Rapid rate of chamber refrigeration and accurate maintenance of temperature during operation
• Maximum speed of 2000 rpm for microplates and 4200 rpm for centrifuge tubes
• Temperature control range from -10°C to +25°C
• Multiple acceleration and deceleration modes
• Rotor speed can be set in rpm or rcf
• Low noise operation
• Multiple safety features
• Wide range of rotor options

Description

The LMC-4200R from BioSan is a refrigerated bench top centrifuge that can be used for a wide range of applications in medical, biochemical and industrial laboratories. The low noise motor is encased in a protective metal housing that is easy to clean and decontaminate.

The temperature of the LMC-4200R can be set from -10°C to +25°C and the unit features a rapid rate of chamber refrigeration and accurate maintenance of temperature during operation.

The LMC-4200R features multiple acceleration (slow, normal, fast) and deceleration (0, slow, normal, fast) modes and the rotor speed can be set in rpm or rcf.  The unit has a maximum speed of 2000 rpm for microplates and 4200 rpm for centrifuge tubes.

This compact instrument incorporates a number of safety features including metal protective inserts in the casing and lid, automatic imbalance switch-off, and lid lock.

A number of rotors for microplates and different tube sizes are available for the LMC-4200R. Rotors are purchased separately from the centrifuge.

Rotor Options

Part Number	Description
MZ014-MTP	Swing-out rotor for standard 96- and 384-well microplates, all  PCR plate formats, and deep well plates up to 45 mm in height
MZ014-17100	Swing out rotor for 12 x 10 mL round bottom tubes | Maximum tube dimensions: 16 mm x 105 mm (Ø x length)
MZ014-17120	Swing out rotor for 12 x 15 mL conical bottom tubes | Maximum tube dimensions: 17 mm x 120 mm (Ø x length)
MZ014-29115	Swing out rotor with aluminium buckets for 6 x 50 mL conical bottom tubes | Maximum tube dimensions: 29 mm x 115 mm (Ø x length)
AP-96	2 adapters for 96-well semi-skirted and non-skirted PCR plates
AP-384	2 adapters for 384-well microplates

A number of adapters are available for other sizes of tubes. Please contact Advance Scientific for details.

Specifications

Manufacturer	BioSan
Model number	LMC-4200R
Temperature control range	-10°C to +25°C
Stable temperature maintenance range	25° below ambient to +25°C
Temperature setting resolution	1°C
Speed range (centrifuge tubes)	100 rpm - 4200 rpm in 100 rpm increments
Maximum rcf (centrifuge tubes)	3160 x g
Speed range (microplates)	100 rpm - 2000 rpm in 100 rpm increments
Maximum rcf (microplates)	560 x g
Display	2 line LCD
Timer range	1 to 90 minutes in 1 minute increments
Chamber diameter	360 mm
Instrument dimensions (W x D x H)	635 mm x 580 mm x 335 mm
Weight	56 Kg
Power	230 VAC: 50/60 Hz
